Git Remote Repositories, Fetching, and Collaboration

Remote Repositories

A remote repository is a Git repository hosted on another machine,
usually on the internet.
Developers push their changes to the remote so other contributors can
access them.

Common hosting platforms:

  • GitHub
  • GitLab
  • Bitbucket

In practice, the only major difference between a local repository
and a remote repository is visibility.
A remote repository is accessible to other users over the network.

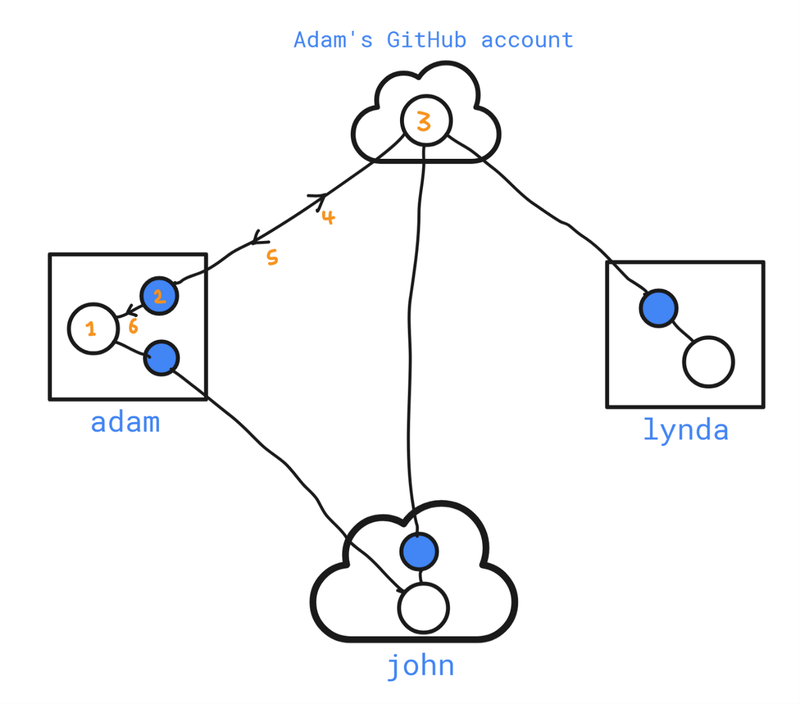

Repository Topology

The following diagram illustrates how local repositories interact with
remotes.


Diagram Legend

Shapes

  • Square --- Local computer without a public IP
  • Cloud --- Public server on the internet
  • Empty circles --- Git repositories with three trees:
    • Working tree
    • Staging area
    • Repository (commit history)
  • Filled circles --- Local mirrors of remote repositories
  • Lines --- Remotes (connections between repositories)

Numbered Elements

  1. Adam's local repository on his machine.
  2. A local mirror of the remote repository (updated via fetch).
  3. A remote repository hosted on GitHub.
  4. Push --- Upload local commits to the remote repository.
  5. Fetch --- Download commits from the remote repository into the
    local mirror.
  6. Merge --- Apply downloaded changes to the local repository.

Key Points

  • A GitHub repository is just a normal Git repository.
  • Git is distributed; there is no technical requirement for a
    central server.
  • Adam's local repo and the GitHub repo are separate repositories.
  • Contributors (e.g., John and Lynda) can clone the repository and
    work independently.
  • Multiple remotes can be defined.

From this point forward, repository will be shortened to repo.

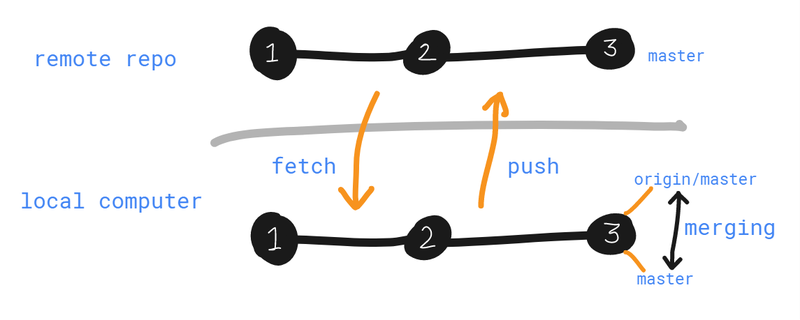

Push, Fetch, and Merge

Push

git push copies commits from a local repo to a remote repo.

When pushing:

  • Git updates the remote repository.
  • Git maintains a remote tracking branch locally.

Typical naming:

origin/<branch>
  • origin --- default remote name
  • <branch> --- branch name on the remote


Remote References

  • origin is a reference to the remote repository.
  • Remote definitions are stored inside:
<!-- -->

.git/config

Remote tracking branches are stored under:

.git/refs/remotes/

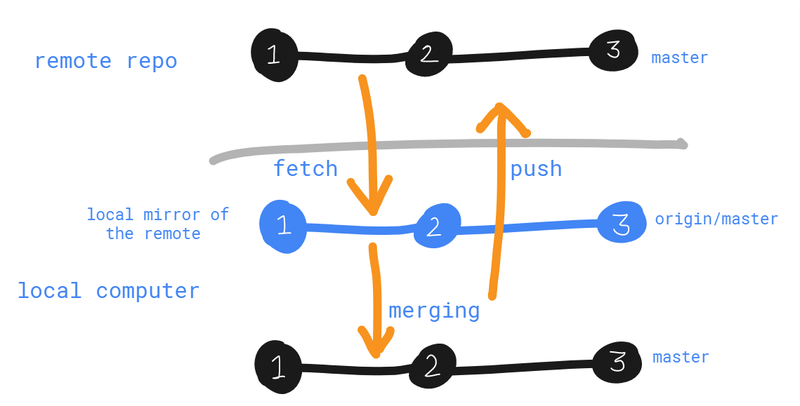

The local repository and the remote mirror share the same commits.
Only branch pointers differ.

Fetch

git fetch downloads new commits from the remote repository.

Effects:

  • Updates remote tracking branches (e.g., origin/master)
  • Does not modify the working directory
  • Does not update local branches

Example:

git fetch

After fetching:

  • origin/master moves forward
  • master remains unchanged

Merge

To apply fetched changes locally:

git merge origin/master

This merges the remote tracking branch into the local branch.


Example Workflow

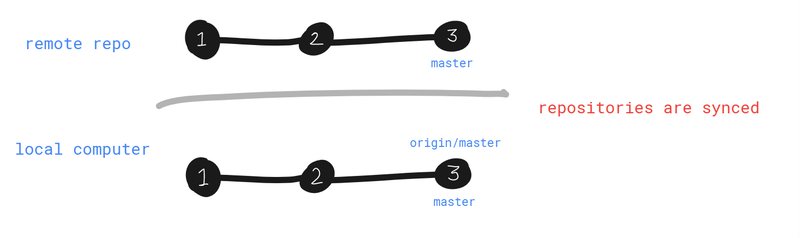

Initial state of local and remote repositories:

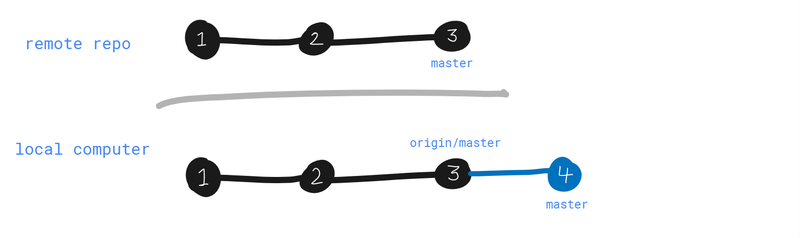

Local Commit

After making a commit locally:

  • master moves forward
  • origin/master remains unchanged

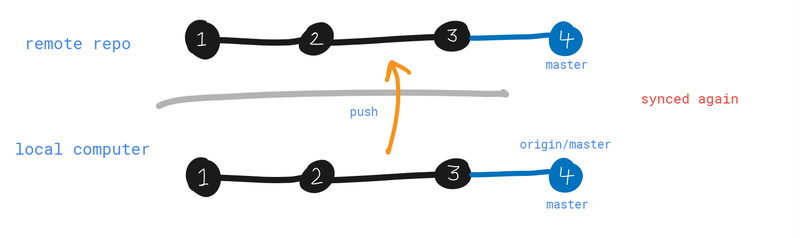

Push Changes

Running:

git push

Git performs:

  1. Fast‑forward merge of origin/master
  2. Upload of commits to the remote repository

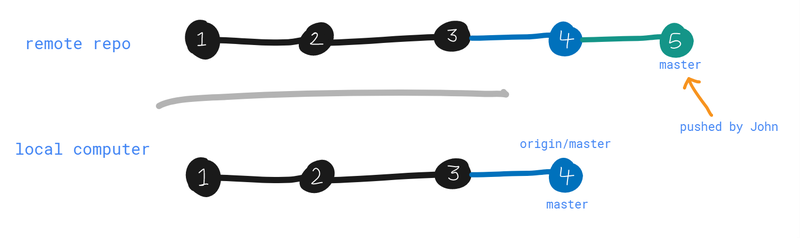

Remote Updated by Another Contributor

Another developer pushes commit 5.

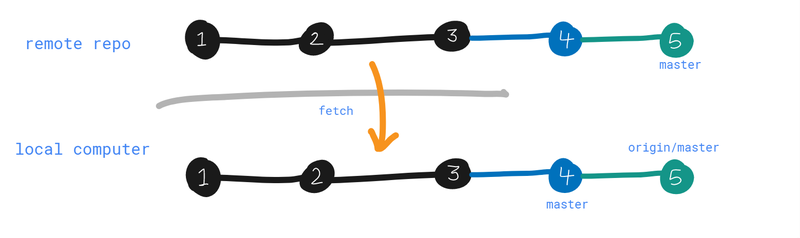

Fetch Remote Changes

Running:

git fetch

Updates:

  • origin/master moves forward
  • master remains unchanged

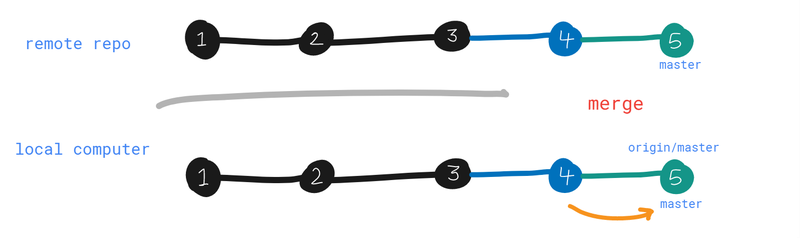

Merge Remote Changes

Apply updates locally:

git merge origin/master

Result:

  • Local repo synchronized with remote.


Remote tracking branches always attempt to reflect the state of the
remote server.

Connecting to a GitHub Repository

Add a remote:

git remote add origin <repo_uri>

List remotes:

git remote

Remove a remote:

git remote rm origin

Push a branch:

git push -u origin master

View remote branches:

git branch -r

View all branches:

git branch -a

Cloning a Repository

To start working on an existing project:

git clone <repo_uri>

Optional custom directory name:

git clone <repo_uri> project_dir

Effects:

  • Creates a directory
  • Initializes a local Git repo
  • Downloads commit history
  • Sets up tracking between master and origin/master

Tracking Remote Branches

The master branch automatically tracks origin/master after cloning.

For new branches this must be configured manually.

Example branch:

new_feature

Option 1 --- Config File

Edit .git/config:

[branch "new_feature"]
    remote = origin
    merge = refs/heads/new_feature

Option 2 --- Git Config

git config branch.new_feature.remote origin
git config branch.new_feature.merge refs/heads/new_feature

Option 3 --- Push with Tracking

git push -u origin new_feature

This creates:

origin/new_feature

and sets up tracking.

Remote Branch Operations

Compare Local and Remote Branch

git diff origin/master..master

Fetch Rules

  • Fetch before starting work
  • Fetch before pushing
  • Fetch frequently

Fetching:

  • Requires internet connection
  • Does not affect the working directory
  • Is safe to run anytime

Pull

git pull combines two commands:

git fetch
git merge

Usage:

git pull

Advantages:

  • Faster workflow

Disadvantages:

  • Harder to debug merge problems
  • Many developers misunderstand what it does

Creating Local Branches from Remote Branches

Suppose Lynda pushes a branch:

lyndas_branch

After fetching, the branch exists locally as:

origin/lyndas_branch

Create a local tracking branch.

Two‑step method

git branch lyndas_branch origin/lyndas_branch
git checkout lyndas_branch

One‑step method

git checkout -b lyndas_branch origin/lyndas_branch

Handling Push Rejections

If someone pushed new commits before you:

git push

may fail.

Resolution:

git fetch
git merge origin/master
git push

Deleting Remote Branches

Old Syntax

git push origin :branchX

git push origin --delete branchX

GitHub Collaboration

GitHub hosts Git repositories and manages collaboration.

Repository Visibility

Public

  • Anyone can clone the repository
  • Only approved collaborators can push

Private

  • Access restricted to selected users

Forking Workflow

Forking creates your own copy of a repository.

Process:

  1. Fork the repository.
  2. Clone your fork.
  3. Implement changes.
  4. Submit a pull request.
  5. Repository maintainers review and merge.

Example Collaboration Workflow

Joe's Workflow

git checkout master
git fetch
git merge origin/master

Create a feature branch:

git checkout -b feedback_form

Develop the feature:

git add feedback.html
git commit -m "Add customer feedback form"

Push branch:

git push -u origin feedback_form

Lynda's Workflow

Update repository:

git checkout master
git fetch
git merge origin/master

Checkout Joe's branch:

git checkout -b feedback_form origin/feedback_form

Review commits:

git log
git show <hash>

Make improvements:

git commit -am "Add tour selector to feedback form"

Push updates:

git push

Joe Syncs Changes

git fetch
git log -p feedback_form..origin/feedback_form
git merge origin/feedback_form

Merge feature into master:

git checkout master
git fetch
git merge origin/master
git merge feedback_form
git push

Git Aliases

Aliases shorten frequently used commands.

Example:

git config --global alias.st status

Usage:

git st

Useful Aliases

git config --global alias.co checkout
git config --global alias.ci commit
git config --global alias.br branch
git config --global alias.df diff
git config --global alias.lg "log -p"
git config --global alias.logg "log --graph --decorate --oneline --abbrev-commit --all"

Aliases can be defined in:

  • Project config
  • Global config (~/.gitconfig)
  • System config
